Laminar Air Flow
Laminar Air Flow Cabinet Manufacturer & Supplier in India
SR Air System is a leading Laminar Air Flow Systems manufacturer and supplier in all over India. We specialize in designing and producing a comprehensive range of HEPA-filtered LAF cabinets, workstations, benches and units that provide ISO-compliant, particle-free work zones.
Our high-quality ISO certified Laminar Air Flow units are essential for ensuring clean and controlled environment for handling sensitive materials in Pharmaceutical Research, Laboratory Testing, IVF Centers, and Operation Theatres. We offer customized units built from corrosion-resistant SS 304 or SS 316 stainless steel.
Why Choose Our Laminar Air Flow Cabinets?
Our systems are engineered for durability and compliance with WHO-GMP and ISO 14644-1 standards.
- Superior Filtration: Equipped with H14 HEPA filters (99.999% efficiency at 0.3 microns).
- Material Excellence: Available in high-grade SS 304, SS 316, or GPSP powder-coated finishes.
- Ergonomic Design: Low-noise blowers (<65 dB) and anti-vibration mounting for long laboratory hours.
- Safety Integrated: Built-in UV-C germicidal lamps and interlocking systems for operator safety.
LAF Solutions by SR Air System
As a premier laminar air flow manufacturer, we specialize in a variety of models to suit Pharmaceutical & cleanroom specific needs:

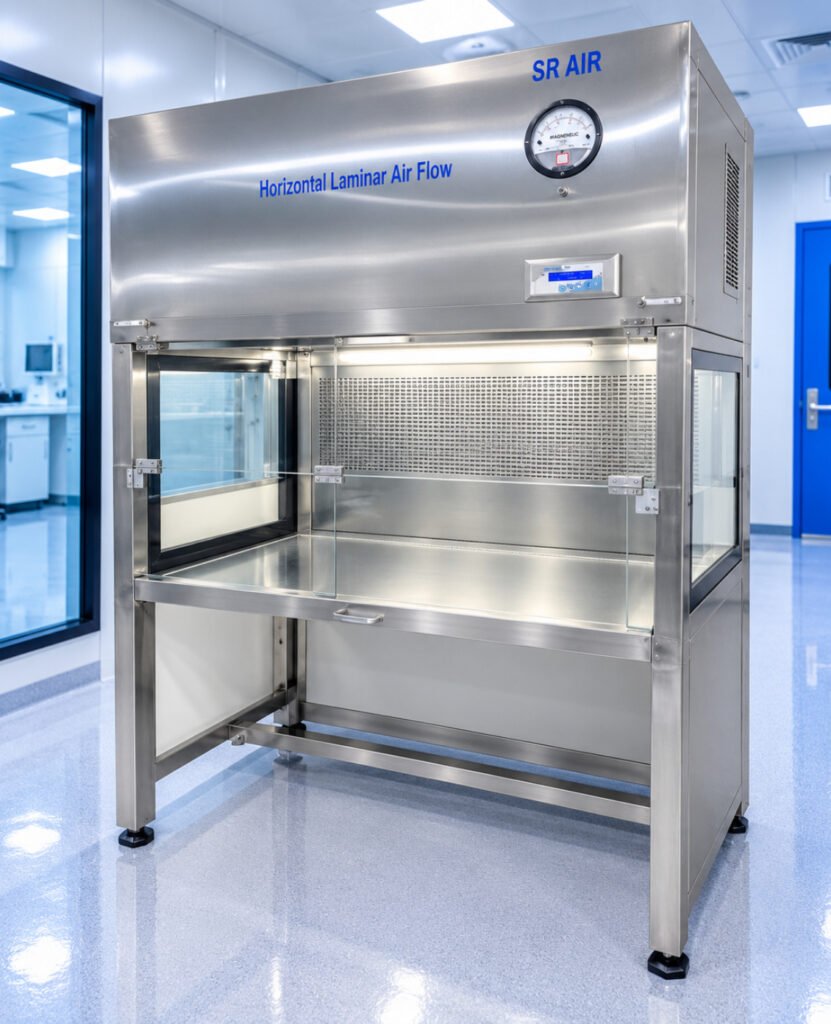

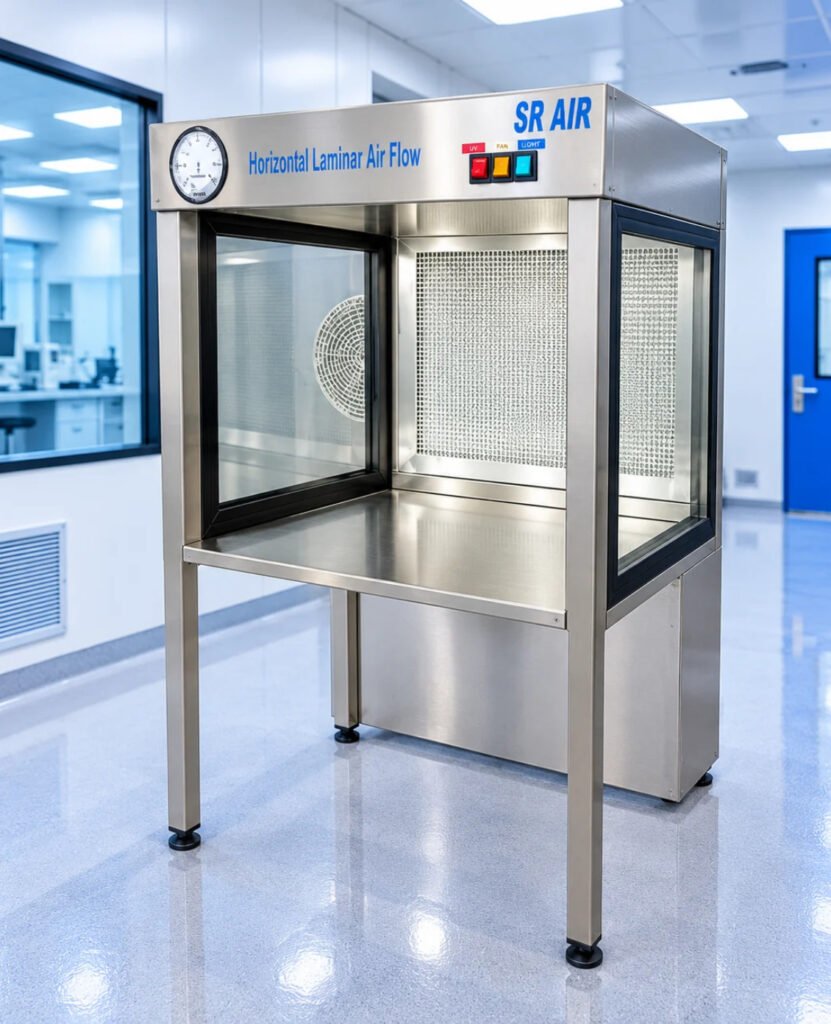

Horizontal Laminar Flow Cabinet
Ideal for clinical research and pharmaceutical labs where the sample requires the cleanest possible air before it reaches the operator.
Vertical Laminar Air Flow
Perfect for micro-electronics assembly and pharmacy applications. These units occupy less floor space and provide a protective curtain of air.
Stand Mounted Laminar Air Flow
Designed for flexibility, our mobile units feature medical-grade PU castors with brakes, allowing for “clean zone” movement across different lab sections.

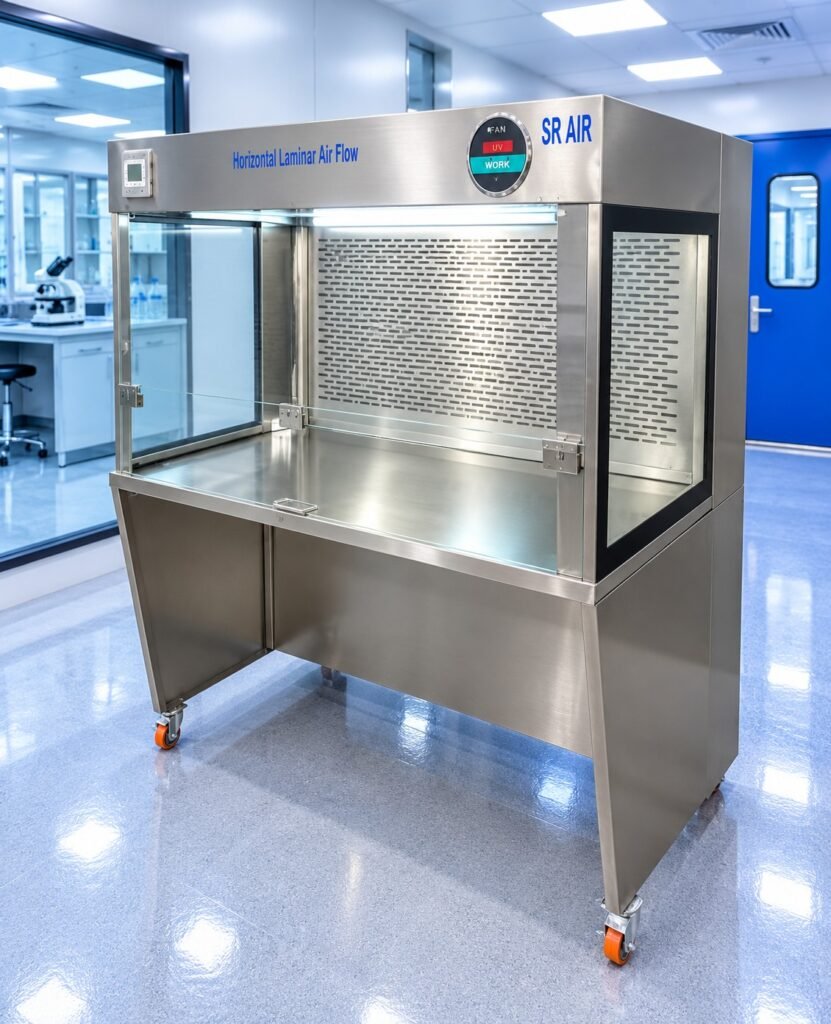

Portable Laminar Flow Cabinet
A versatile, freestanding cabinet that offers flexibility and easy integration into any lab or cleanroom layout.

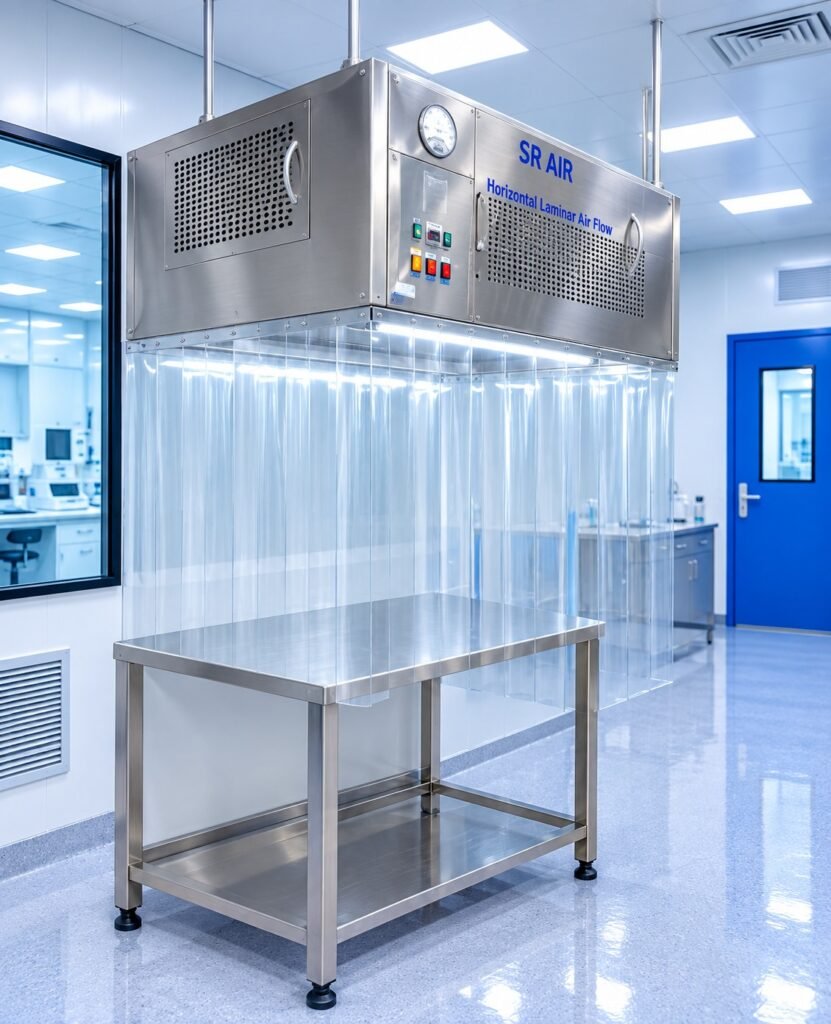

Ceiling Suspended Laminar Air Flow Unit
An innovative solution for maintaining sterility in large areas, such as operation theaters, without occupying floor space.

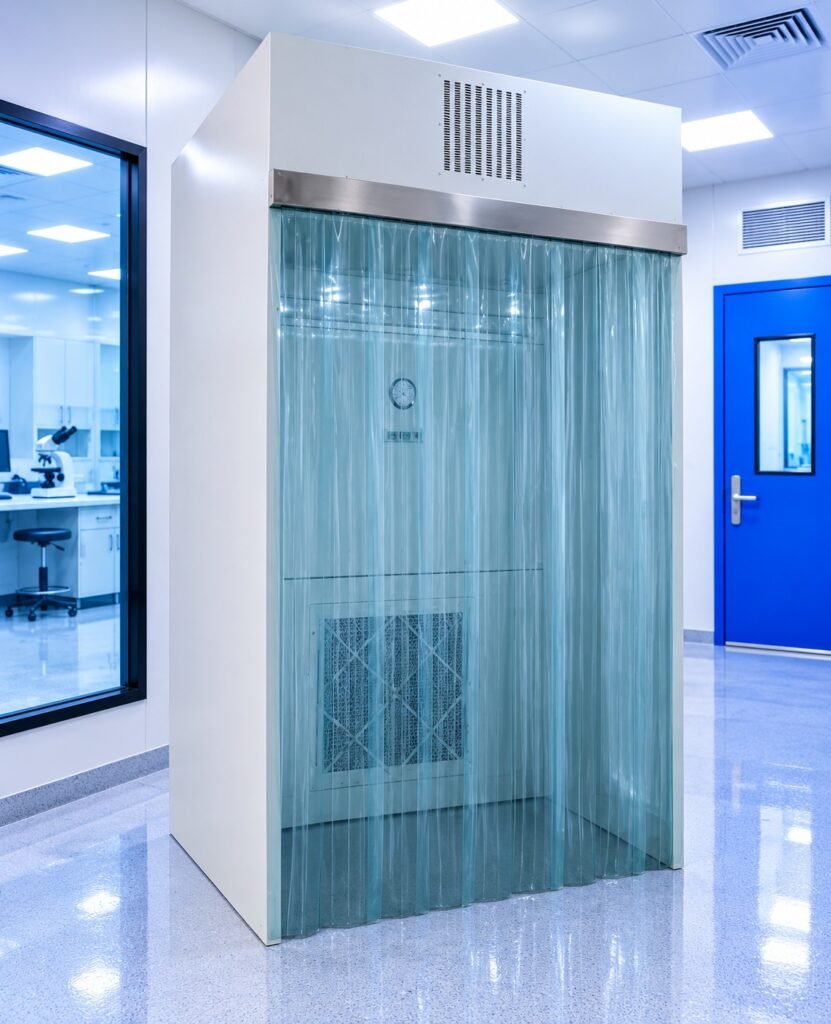

Reverse Laminar Air Flow
Also known as Sampling/Dispensing Booths, these protect the operator from hazardous powder or chemical fumes during material transfer.

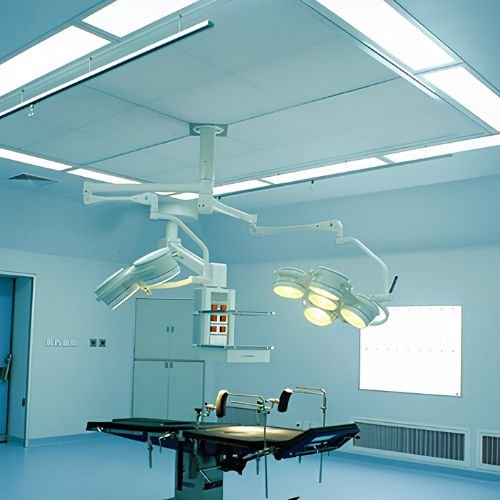

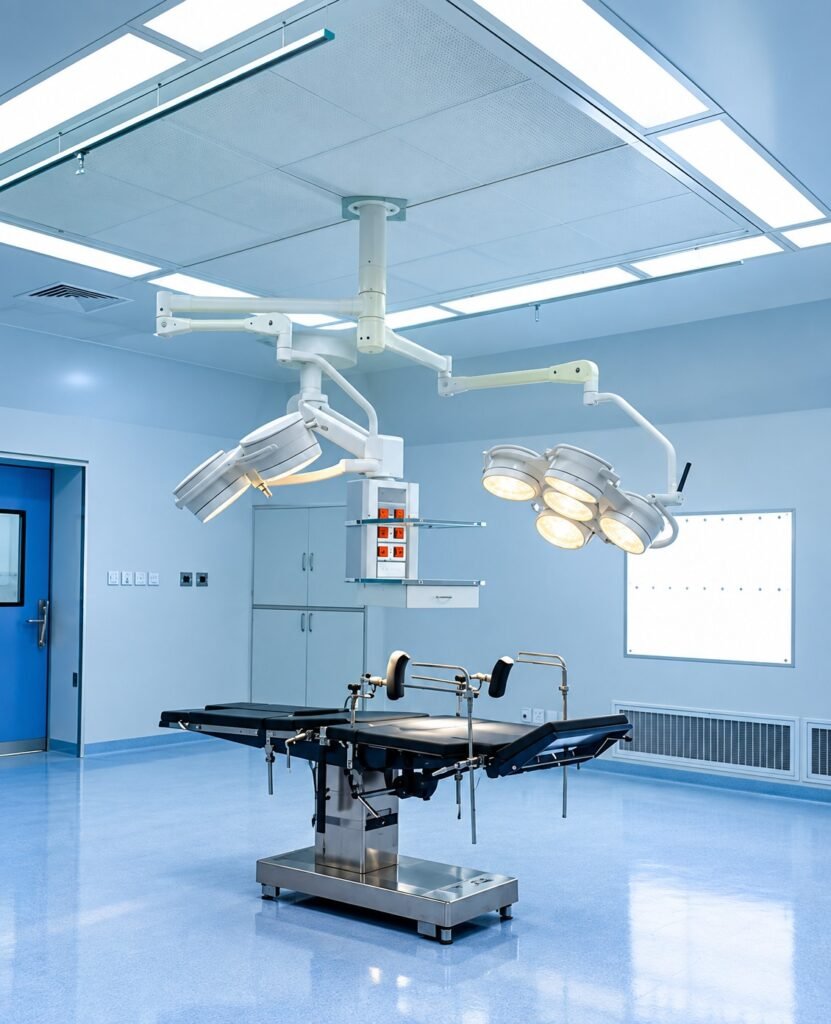

OT Room Laminar Air Flow
Specialized Plenum systems designed to create sterile surgical zones in hospitals.

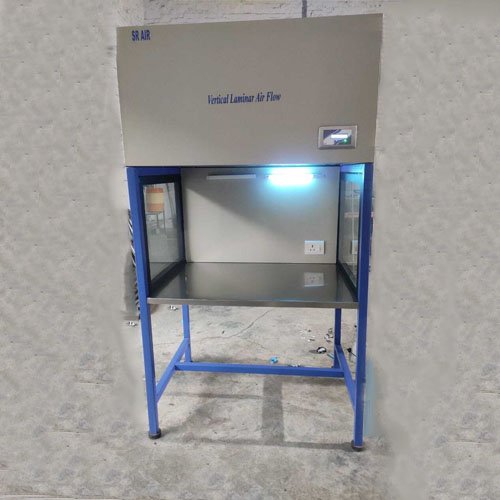

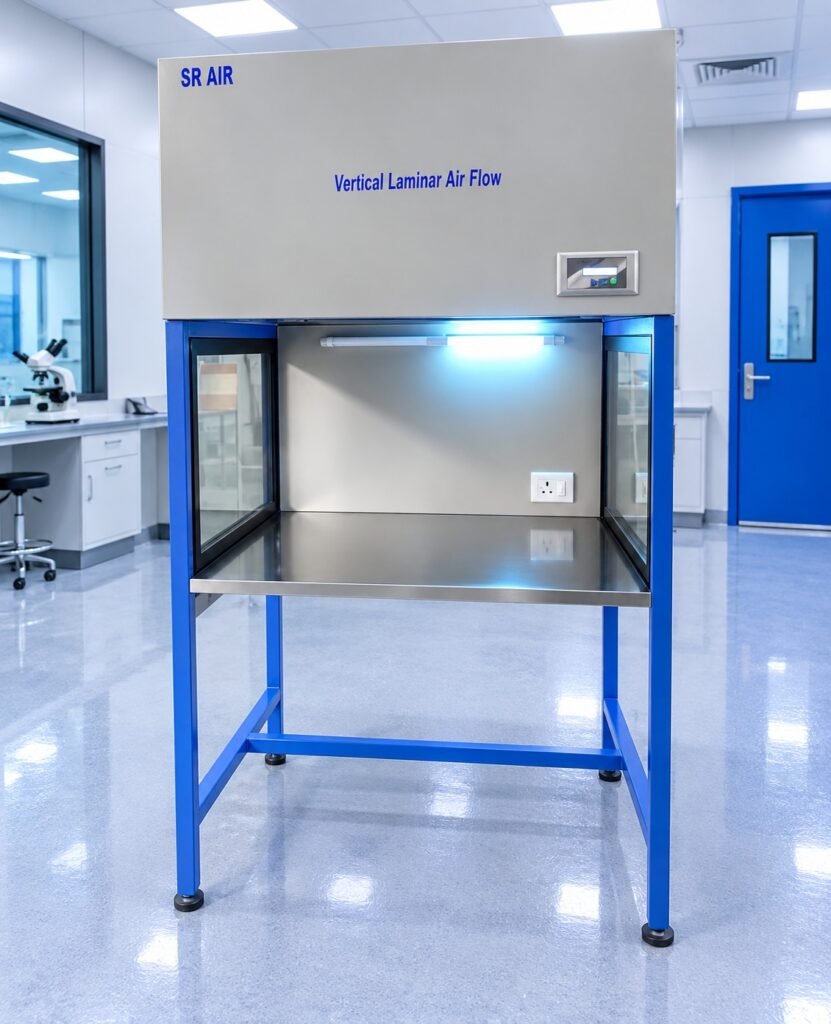

MS Vertical Laminar Air Flow
An economical powder-coated Mild Steel option for budget-conscious laboratory setups.

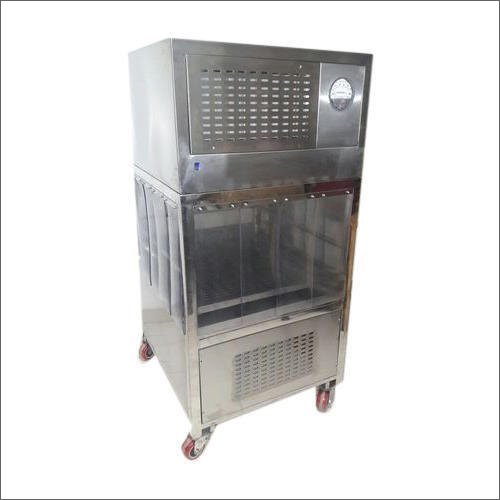

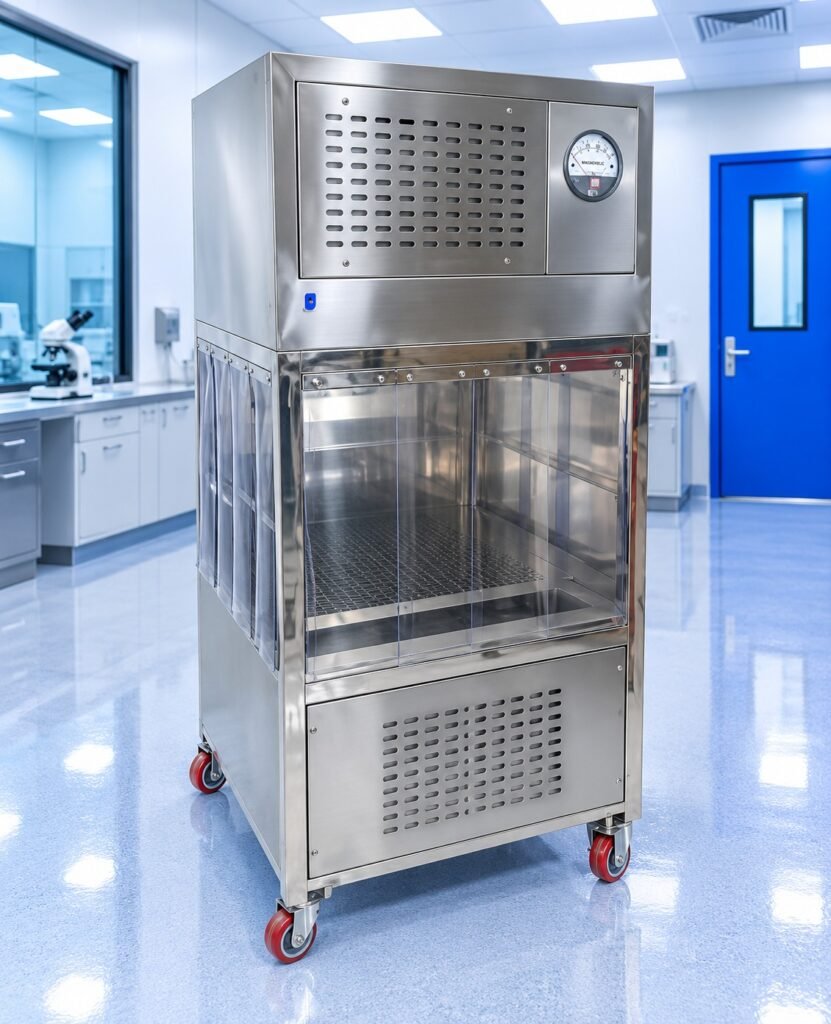

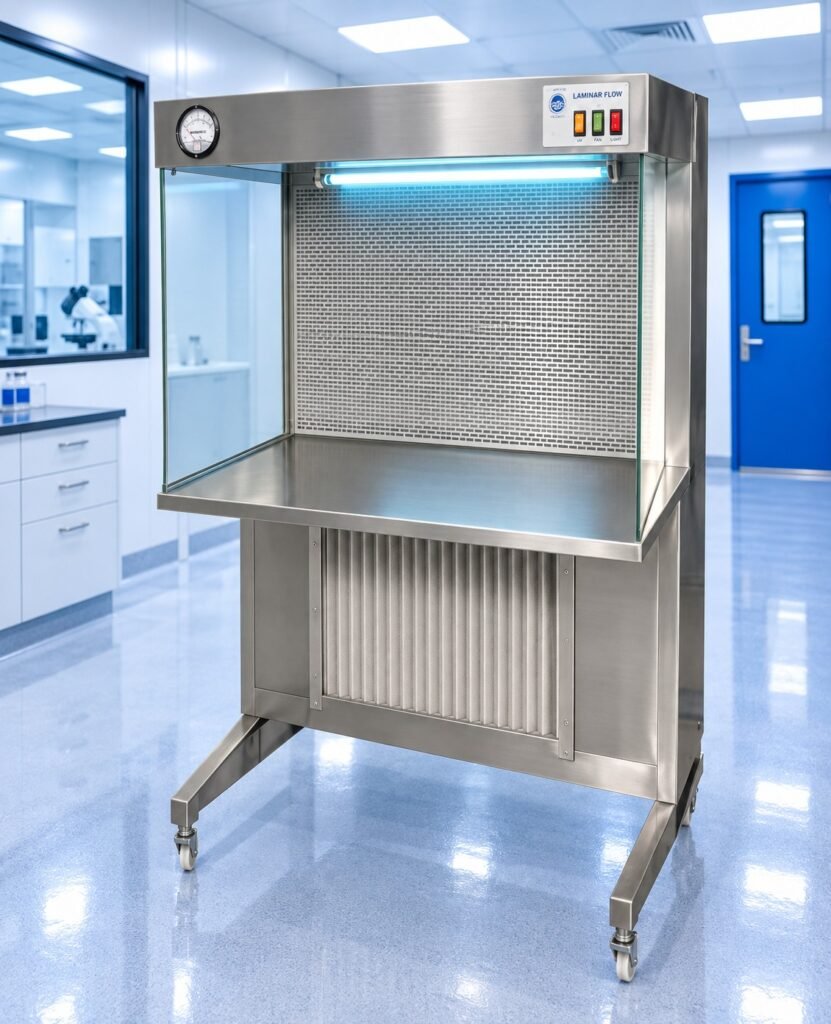

Mobile Laminar Air Flow
Equipped with high-grade castor wheels for safely transporting sterile products between clean zones without risking contamination.
Laminar Air Flow Technical Specification
Choosing the right airflow direction is critical for your application. We manufacture both Horizontal and Vertical configurations to suit your cleanroom needs.
| Feature | Horizontal LAF | Vertical LAF |
|---|---|---|
| Material (MOC) | SS 304 / SS 316 / MS Powder Coated | SS 304 / SS 316 / MS Powder Coated |
| Filtration | HEPA H14 (Efficiency 99.999%) | HEPA H14 (Efficiency 99.999%) |
| Pre-Filter | 10 Micron (Washable Nylon) | 10 Micron (Washable Nylon) |
| Air Velocity | 0.45 m/s ± 20% | 0.45 m/s ± 20% |
| Cleanliness | ISO Class 5 (Class 100) | ISO Class 5 (Class 100) |
| Illumination | LED Light & UV Germicidal Lamp | LED Light & UV Germicidal Lamp |
| Vibration Level | Minimum (Low Noise Blower) | Minimum (Low Noise Blower) |
| Power Supply | 230V AC, 1 Phase, 50Hz | 230V AC, 1 Phase, 50Hz |
| Best For | Large Samples, Non-Hazardous Materials | Space Saving, Pharmacy Compounding |
| Filter Position | Back Wall (Rear Mounted) | Top Mounted |
| Contamination Risk | Lower(Airflow clears samples first) | Higher (if hands are above samples) |
| Air Flow Direction | Outward towards the operator | Downwards towards the work surface |
Standard Components:
- Pre-Filters: 10-micron efficiency (Washable Synthetic Fiber).
- HEPA Filters: Mini-pleat HEPA filters with aluminum separators.
- Illumination: High-intensity LED lighting (>800 Lux).
- Monitoring: Analog or Digital Magnahelic Pressure Gauges.
FAQs
A laminar air flow system ensures unidirectional airflow through HEPA filters, providing a sterile environment for laboratories and industrial applications.
Horizontal systems are ideal for small-scale sample handling, while vertical systems are preferred for sensitive sterile work requiring downward airflow. We manufactures both types that fulfill your needs.
Yes, all our units meet ISO 14644-1 cleanroom standards for controlled environments.
Absolutely! We provide custom sizes, materials, and features to meet your lab requirements.
Pharmaceutical labs, hospitals, research institutes, cleanrooms, and food processing units rely on these systems for particle-free environments.
Typically every 2–3 years depending on usage and environment. We recommend monitoring the differential pressure gauge; once it exceeds the initial pressure by 2x, it’s time for a change.
SS 304 is standard for most labs, while SS 316 is recommended for environments using corrosive chemicals or high-salinity cleaning agents.
